Fender
Product Descriptions
Fender

Features

AOV Type Fender

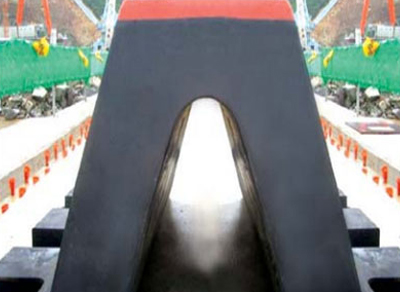

The AOV fender highlights low reaction and high absorption energy, and when the fender is compressed, the arch shaped fender reduces the concentration of stress. Also, its open type is easily installed.Compression Test

Compression Test

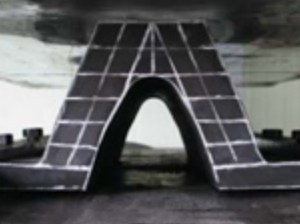

  • Deflection 0%

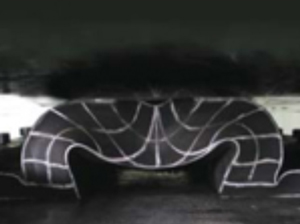

  • Deflection 15%

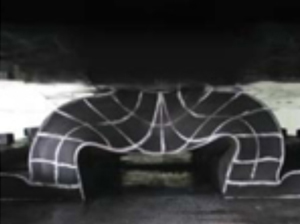

  • Deflection 30%

  • Deflection 45%

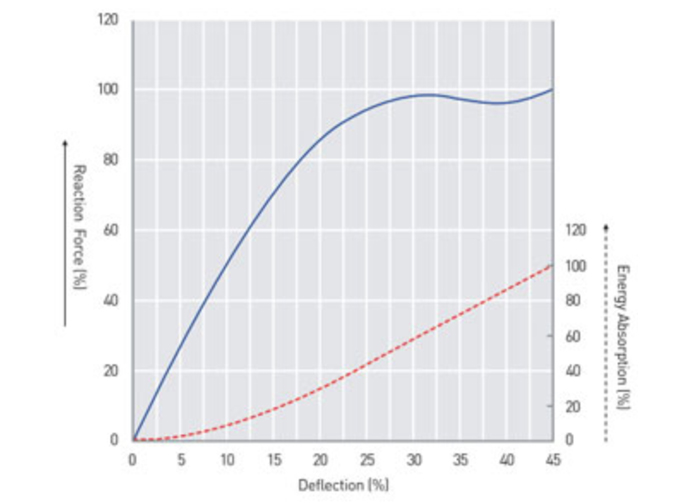

Performance Curve

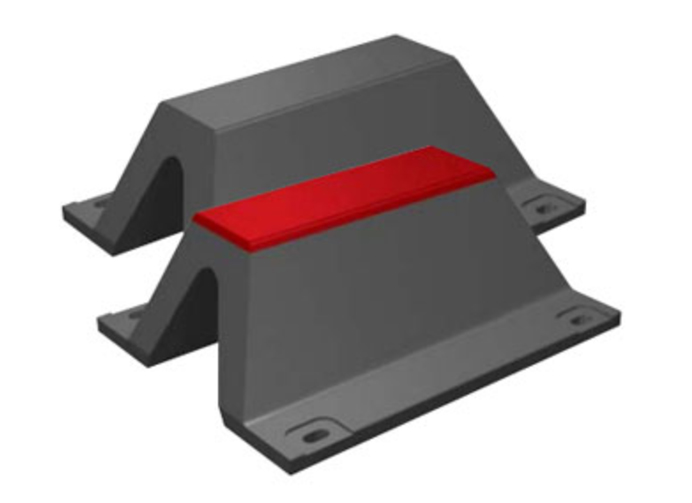

3D Model

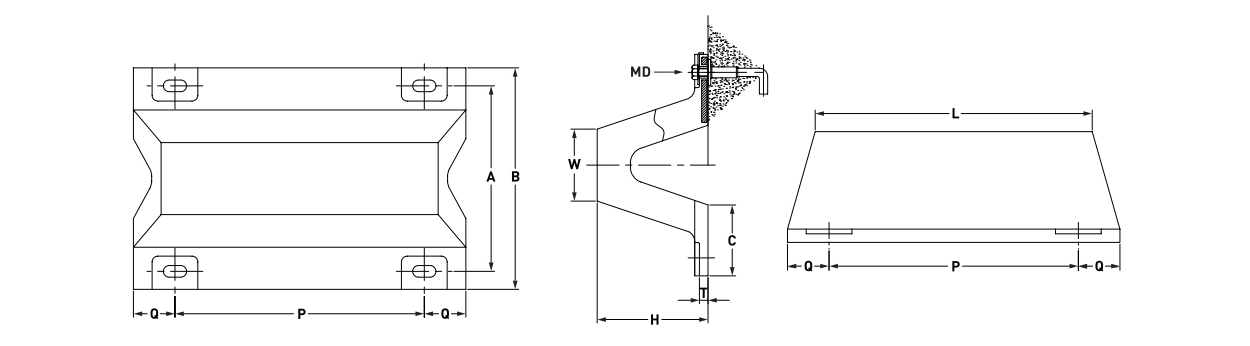

Specification / Dimensions

Height MD A B C T W 1000L 1500L 2000L 2500L 3000L 3500L
P Q P Q P Q P Q P Q P Q
150H M22 (7/8) 240 300 96 17 97.5 855 110 675x2 112.5 620x3 107.5 785x3 110 715x4 107.5 671x5 110
200H M24 (1) 320 400 128 17 130 860 120 680x2 120 620x3 120 785x3 122.5 715x4 120 672x5 120
250H M27 (1 1/8) 410 500 160 22 162.5 865 130 680x2 132.5 620x3 132.5 790x3 127.5 715x4 132.5 673x5 130
300H M30 (1 1/4) 490 600 192 23 195 870 140 685x2 140 625x3 137.5 790x3 140 715x4 145 674x5 140
400H M36 (1 1/2) 670 800 256 31 260 900 150 700x2 150 635x3 147.5 800x3 150 725x4 150 680x5 150
500H M42 (1 3/4) 840 1,000 320 34 325 930 160 715x2 160 645x3 157.5 810x3 160 730x4 165 686x5 160
600H M48 (2) 1,010 1,200 384 40 390 960 170 730x2 170 655x3 167.5 820x3 170 740x4 170 692x5 170
800H M64 (2 1/2) 1,340 1,600 512 45 520 1,040 180 770x2 180 680x3 180 845x3 182.5 760x4 180 - -
1000H M64 (2 1/2) 1,680 2,000 640 49 650 1,100 200 800x2 200 700x3 200 865x3 202.5 775x4 200 - -

- MD : Anchor Size See Page 45 ~ 47
