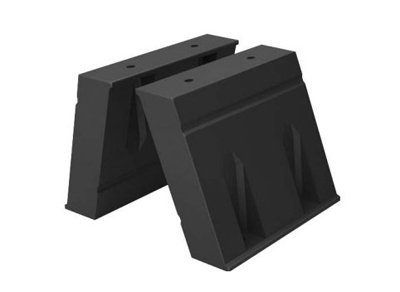

STR Type Fender

Super TR펜더는 TR펜더를 개선한 모델입니다.
고효율 펜더 개발의 필요로 당사가 개발한 제품이며, 설치공간이 부족한 경우 사용가능합니다.

Compression Test

  • Deflection 0%

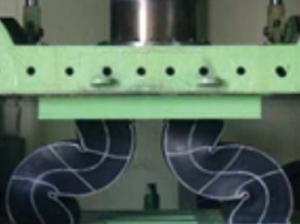

  • Deflection 15%

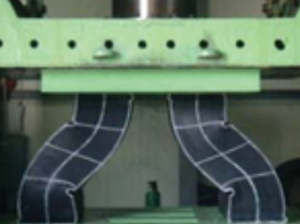

  • Deflection 30%

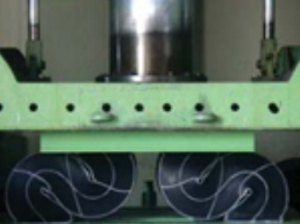

  • Deflection 57.5%

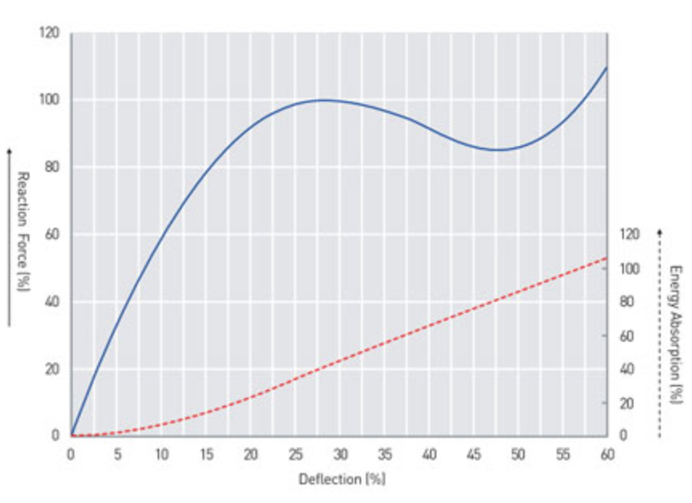

Performance Curve

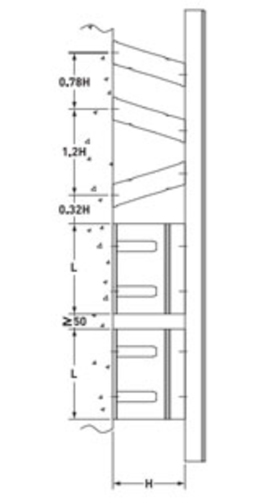

Clearances

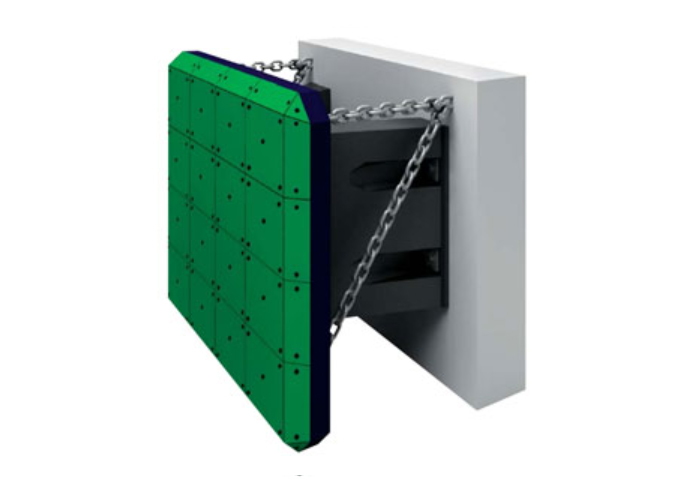

3D Model

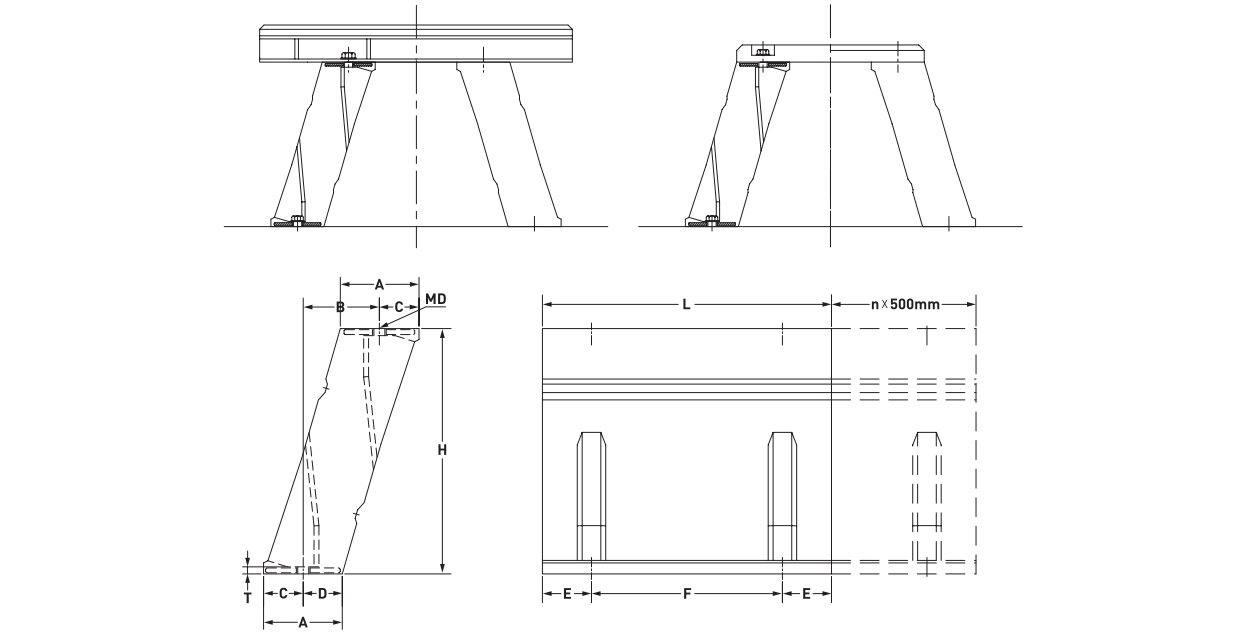

규격 / 치수

Height MD T A B C D E F L
250H M20 (3/4) 17 80 78 40 40 50 300 1000
300H M20 (3/4) 17 94 93 47 47 100 400 1000
400H M24 (1) 17 125 124 63 62 250 500 1000
500H M30 (1 1/4) 20 158 142 87 71 250 500 1000
550H M30 (1 1/4) 20 172 170 87 85 250 500 1000
600H M30 (1 1/4) 20 188 199 87 101 250 500 1000
750H M36 (1 1/2) 26 235 230 118 117 250 500 1000
800H M36 (1 1/2) 26 250 240 129 121 250 500 1000
1000H M42 (1 3/4) 31 322 310 162 160 250 500 1000
1250H M48 (2) 36 401 388 202 199 250 500 1000
1450H M48 (2) 41 454 445 228 226 250 500 1000
1600H M56 (2 1/4) 50 507 480 261 246 250 500 1000

- MD : Anchor Size See Page 45 ~ 47

Angle Factor

Angle(o) Factor
0 1.000
3 0.995
5 0.989
8 0.975
10 0.960
15 0.900
20 0.830

Velocity Factor

1 1.071
2 1.009
3 1.004
4 1.002
5 1.001
6 1.000
8 1.000
≥10 1.000

Temperature Factor

Temp.(oC) Factor
-30 1.205
-20 1.165
-10 1.128
0 1.092
10 1.054
23 1.000
30 0.975
40 0.945
50 0.935
