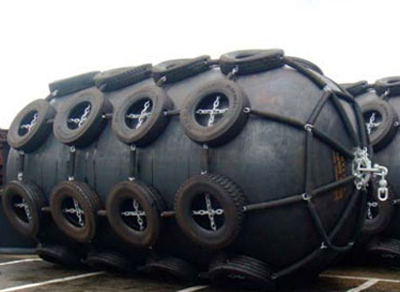

Pneumatic Fender

The Pneumatic Fender, which is easy and light to handle and capable of relocation installation at the right place, is a cost-effective alternative, adequate for long-term use. Based on excellent quality, our company manufactures and provides various types of product used in shipyards, warships, and vessels.Compression Test

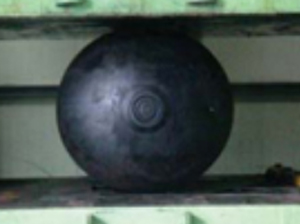

Compression Test

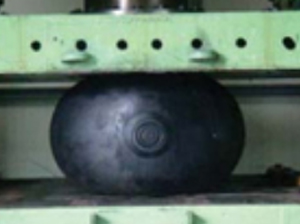

  • Deflection 0%

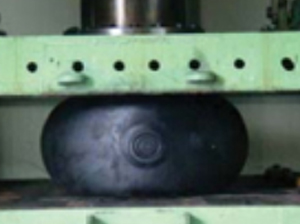

  • Deflection 15%

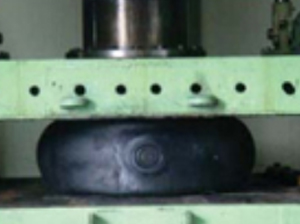

  • Deflection 30%

  • Deflection 60%

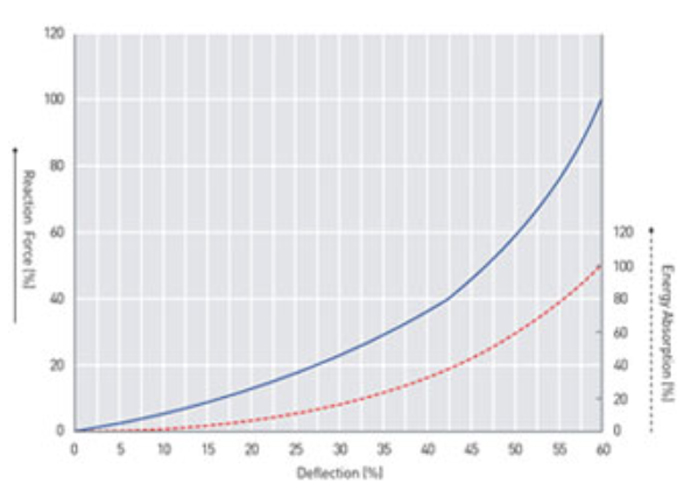

Performance Curve

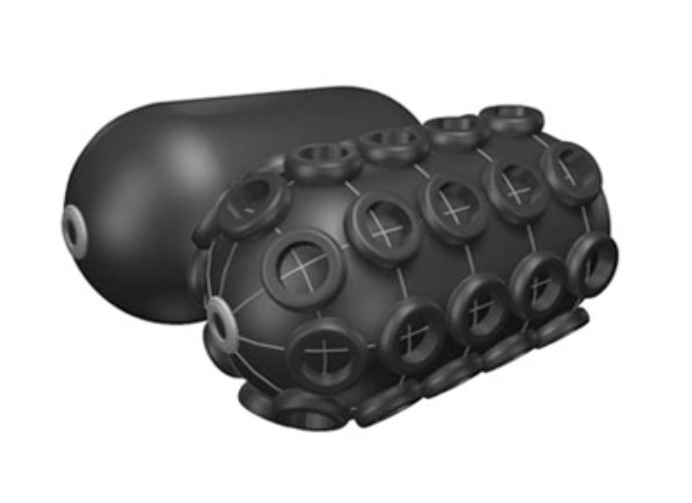

3D Model

Specification / Dimensions

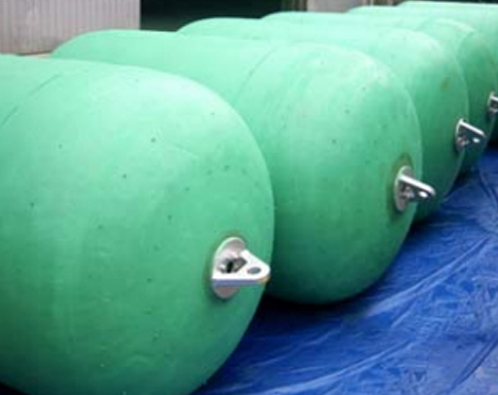

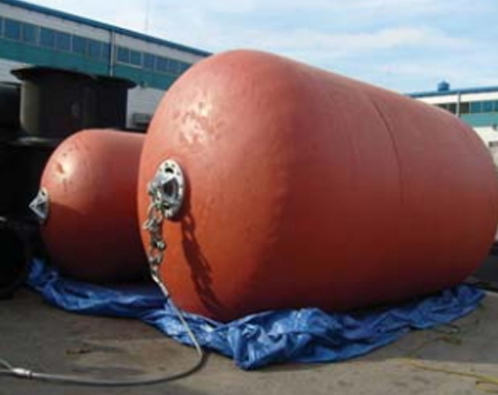

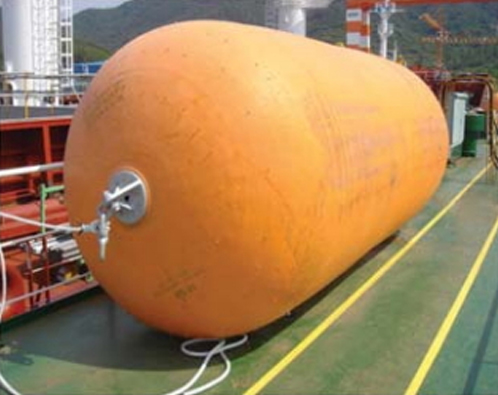

Color fender

Weight

Diameter
Length		 300 500 800 1000 1200 1350 1500 1700 2000 2500 3000 3300 4500
500 600 800 1000 1200 1500 1500 2000 1800 2000 2500 2500 3000 3000 3000 3500 6000 4000 5500 5000 4500 6500 10600 7000 9000
Fender Body 10 15 25 35 75 95 140 170 180 200 270 300 350 500 550 650 950 1100 1350 1700 1800 2250 3000 4100 4950
Chain Net - - - - 100 110 170 200 210 220 260 400 440 510 880 920 1220 1510 1620 2620 2360 3120 4700 5100 6200
Total 10 15 25 35 175 205 310 370 390 420 530 700 790 1010 1430 1570 2170 2610 2970 4320 4160 5370 7700 9200 11150

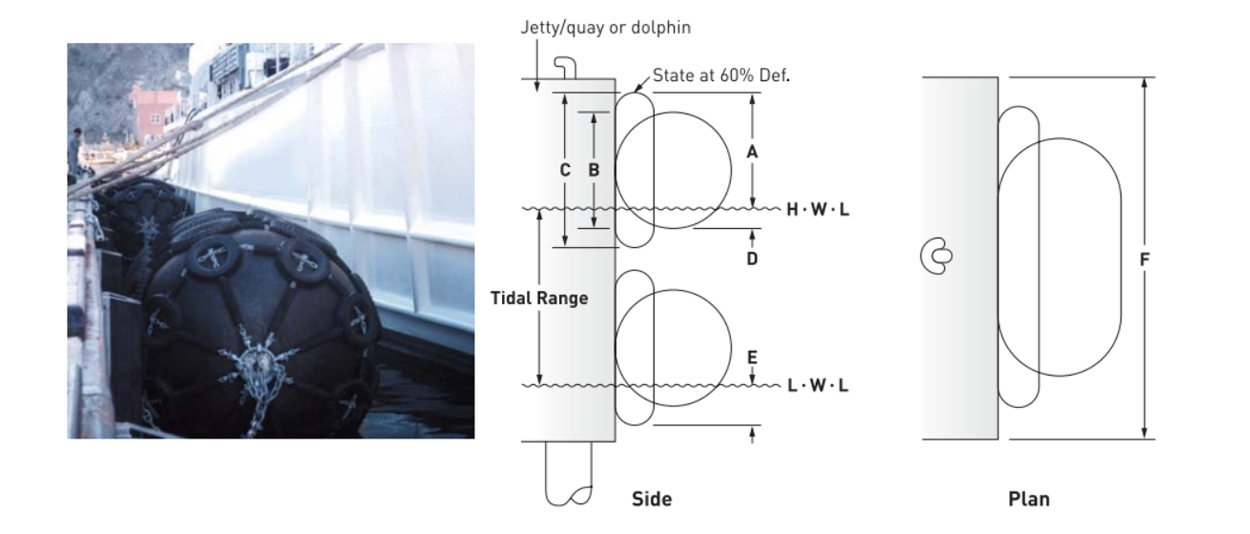

Dimension of Jetty at Installation

Installation Dimension

Size A B C D E F
1000Φ x 1500L 975 950 1350 200 375 2000
1200Φ x 2000L 1200 1140 1620 220 430 2600
1500Φ x 2500L 1525 1420 2050 250 525 3250
2000Φ x 3500L 2050 1900 2700 300 650 4500
2500Φ x 4000L 2490 2380 3380 450 890 5200
3300Φ x 6500L 3380 3140 4460 500 1080 8500
4500Φ x 9000L 4710 4270 6180 800 1470 12000

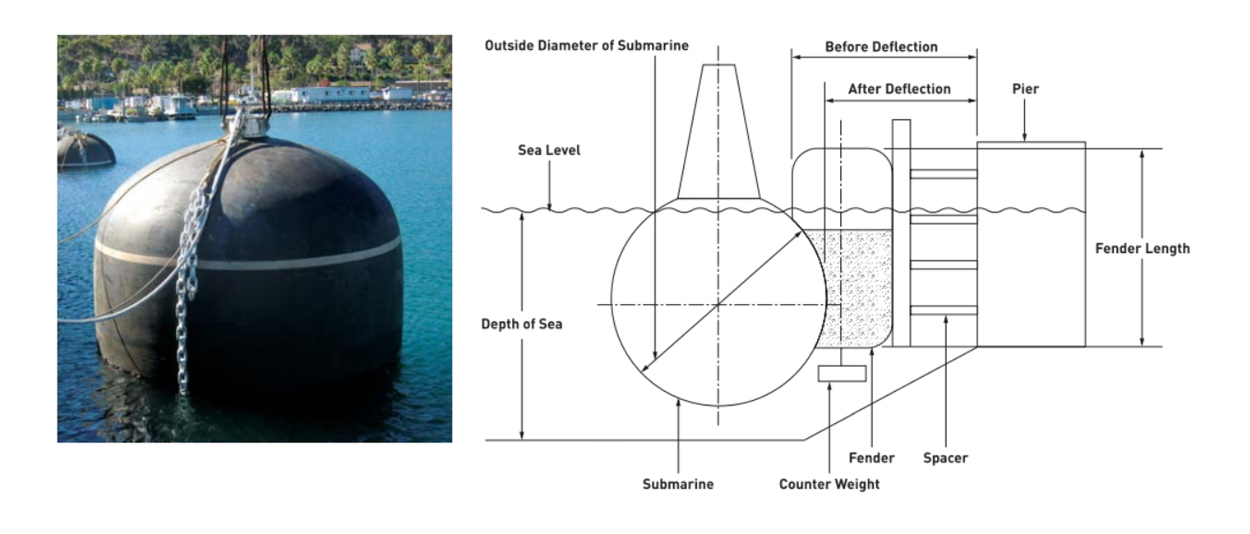

Typical Fender Arrangement for Submarine

Submarine Type Fender Performance Table

Size Φ1700x7200L Φ2000x6000L Φ2500x5500L Φ3300x6500L Φ3300x10600L
DEF(%) 60 45 60 45 60 45 60 45 60 45
Water Ratio(%) 0.0 65.0 0.0 65.0 0.0 65.0 0.0 65.0 0.0 65.0
R·F(kN) 1811.0 610.5 1764.0 598.8 2034.5 686.0 3165.4 1245.6 5164.6 1274.0
E·A(kJ) 560.6 134.3 646.8 154.8 927.1 222.5 1911.0 615.4 3116.4 588.0

- R·F : Reaction Force(kN) -E·A : Energy Absorption(kJ) -Tolerance : ±10%
