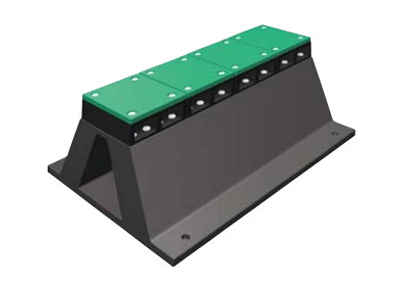

TRS Type Fender

This is an improved V type fender which has high energy absorption. R/E ratio is smaller than other Fenders. It is reinforced by an embedded steel plate across the entire bottom as well as the top of the fender. Resin board is attached on the top of the fender in order to protect the rubber body, to gain better performance and to decrease friction force.

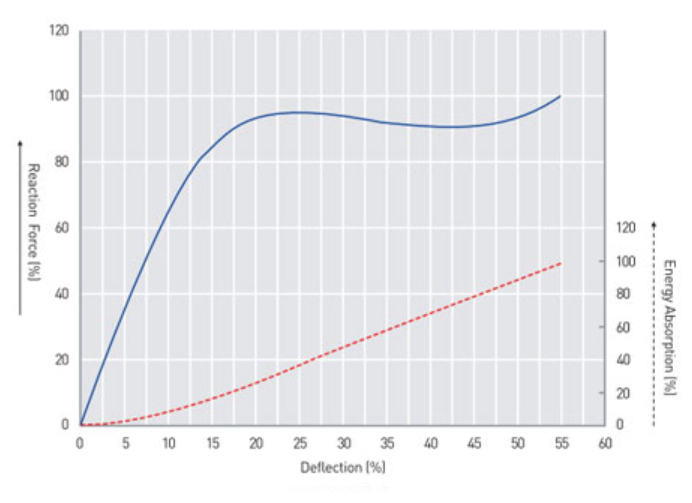

Performance Curve

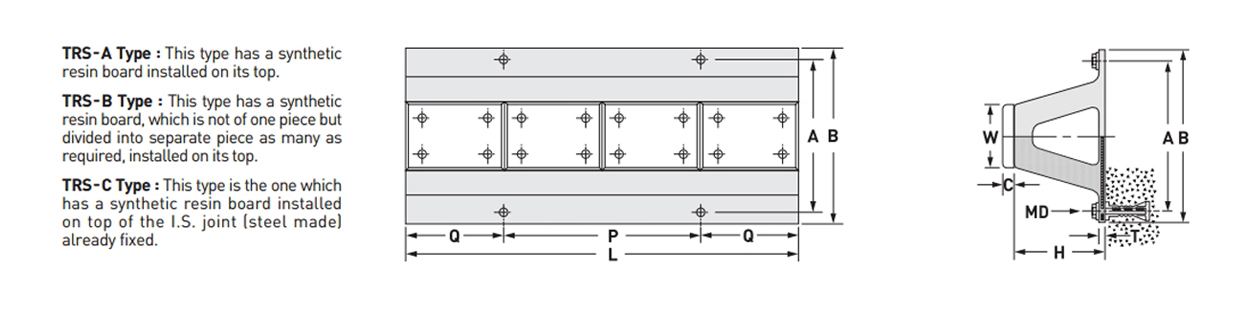

Specification / Dimensions

Height MD A B P Q T W
150 M18 (3/4) 260 320 500 250 20 100
200 M24 (1) 310 380 500 250 25 130
250 M24 (1) 400 500 500 250 30 160
300 M300 (1 1/4) 530 645 500 250 35 190
400 M36 (1 1/2) 710 840 500 250 40 250
500 M42 (1 3/4) 860 1000 500 250 45 320
600 M48 (2) 1050 1210 500 250 50 380
800 M64 (2 1/2) 1350 1550 500 250 60 500
1000 M64 (2 1/2) 1600 1800 500 250 70 640

- C : 30~100mm - MD : Anchor Size See Page 45~47
