Fender
Product Descriptions
Fender

Features

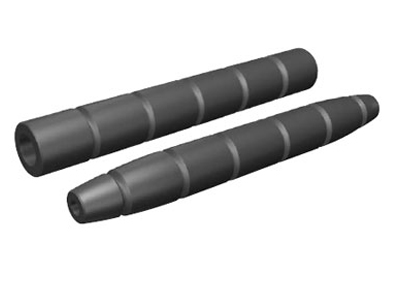

BC Fender

CYL type fenders have a simple cylindrical structure, effectively stand up against great compression deformations with low repulsive power, and are freely installed without regard to an accurate anchor bolt arrangement.Compression Test

Specification, Dimensions

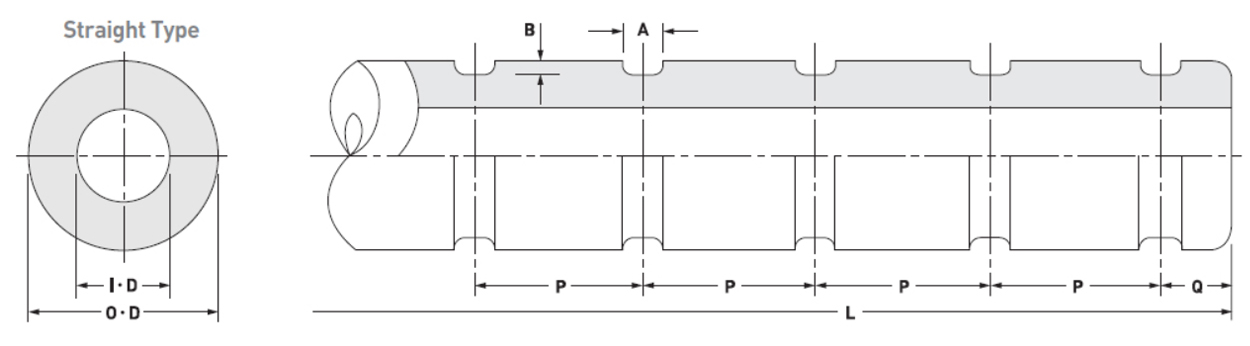

Use : For Side

Size ø100xø50 ø150xø75 ø200xø100 ø250xø125 ø300xø150 ø350xø175 ø400xø200 ø500xø250 ø600xø300 ø700xø350
O·D 100 150 200 250 300 350 400 500 600 700
I·D 50 75 100 125 150 175 200 250 300 350
A 30 30 50 50 50 70 70 70 85 85
B 10 10 15 15 15 20 20 30 30 40
P 600~900 600~900 600~900 600~900 600~900 600~900 600~900 600~900 600~900 600~900
Q 100 100 150 150 200 200 200 250 250 300

- Maximun length available is 20m.

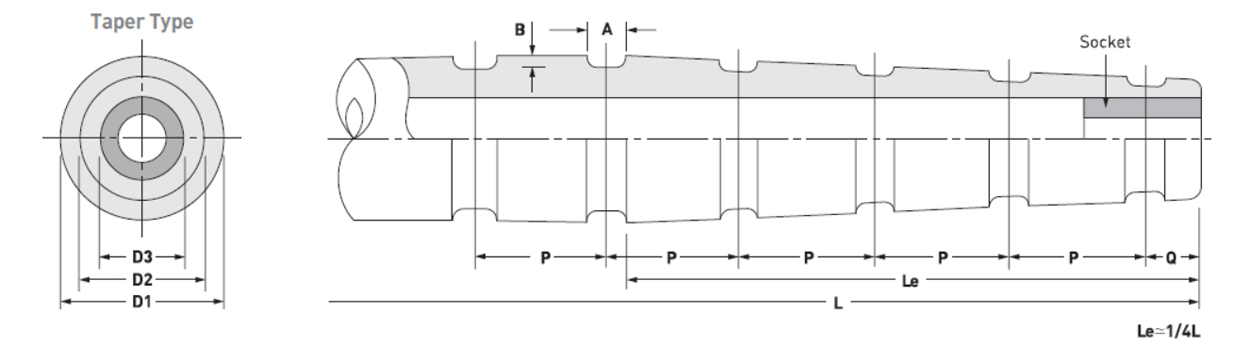

Use : For Bow and Stern

Size ø200xø100 ø250xø125 ø300xø150 ø350xø175 ø400xø200 ø500xø250 ø600xø300 ø700xø350 ø800xø400
D1 200 250 300 350 400 500 600 700 800
D2 150 190 225 260 300 375 450 525 600
D3 100 125 150 175 200 250 300 350 400
A 50 50 50 70 70 70 85 85 85
B 15 15 15 20 20 30 30 40 40
P 600~900 600~900 600~900 600~900 600~900 600~900 600~900 600~900 600~900
Q 150 150 200 200 200 250 250 300 300
Socket O·D - - - - 202 252 303 354 404
I·D - - - - 100 100 150 150 150
Length - - - - 300 350 400 400 400

- Maximun length available is 20m.

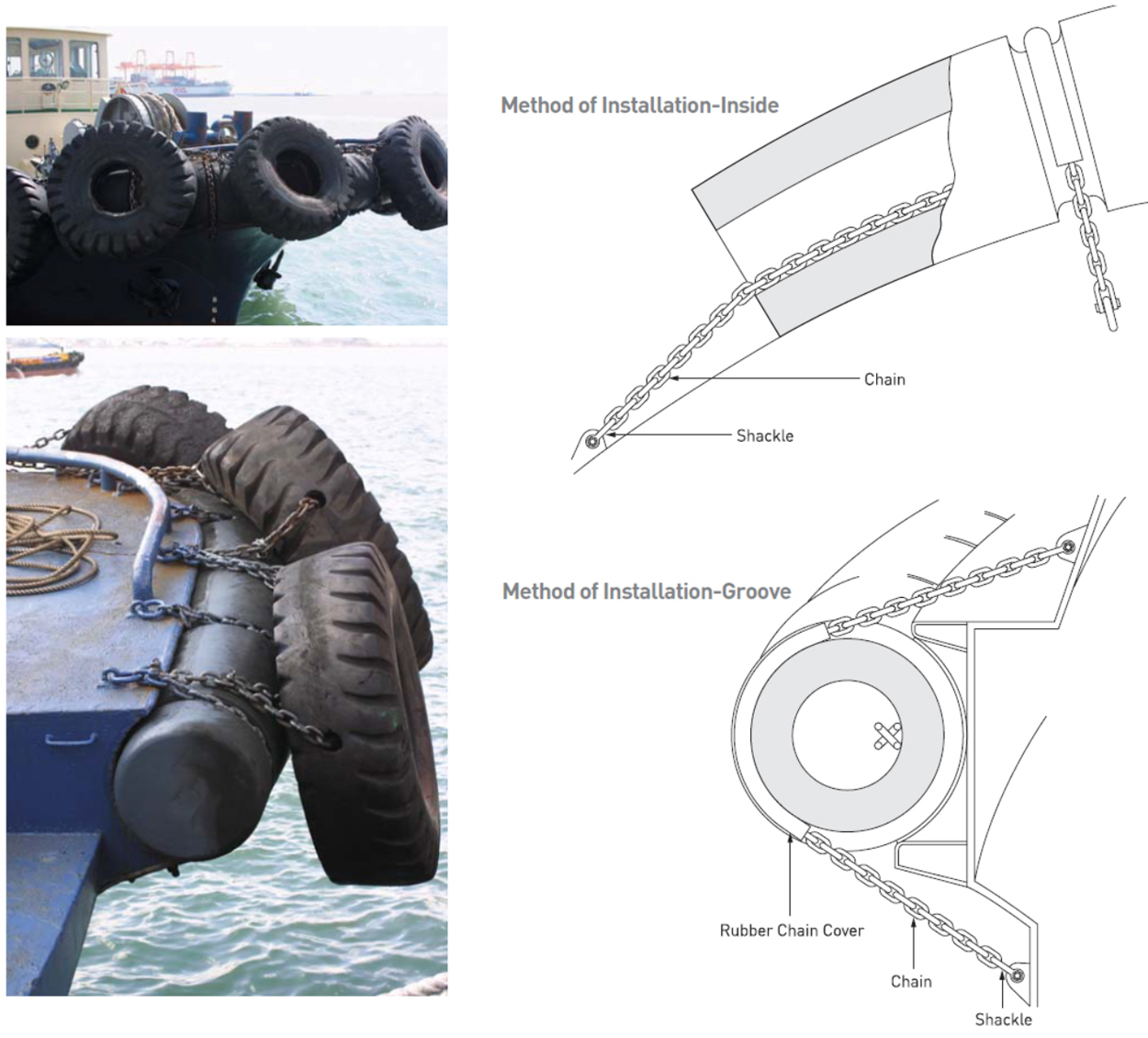

Size of Fitting

Size Chain Shackle Turnbuckle
For Inside For Groove
Less than ø600 ø16 ø16 SC-16 ø19
Including and over ø600 ø19 ø19 SC-20 ø22

- SC : Straight shackle with screwed bolt - Fittings are to be galvanized

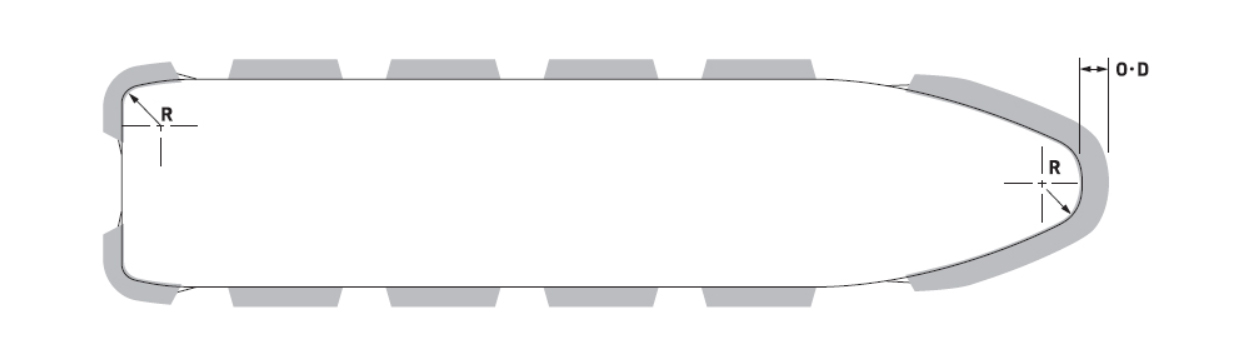

Bending Radius(R) should not over 4 times of outer diameter

O.D ø200 ø300 ø400 ø500 ø600 ø800
Permissible Bending Radius(R) 800 1200 1600 2000 2400 3200
