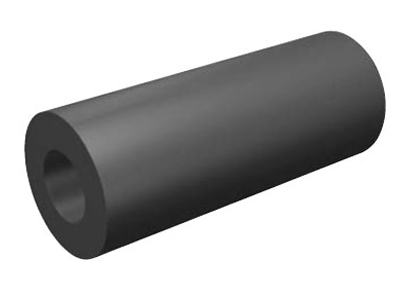

CYL Fender

CYL type fenders have a simple cylindrical structure, effectively stand up against great compression deformations with low repulsive power, and are freely installed without regard to an accurate anchor bolt arrangement.

Compression Test

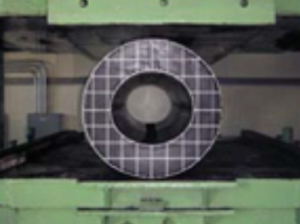

  • Deflection 0%

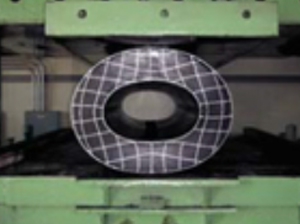

  • Deflection 15%

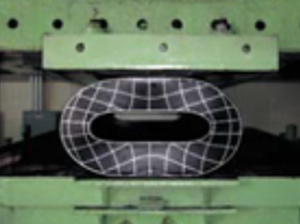

  • Deflection 30%

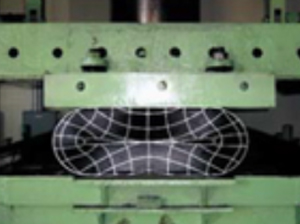

  • Deflection 50%

Performance of Intermediate

Deflection (%) R · F (%) E · A (%)
0 0 0
5 5 1
10 12 3
15 19 7
20 27 12
25 35 20
30 45 30
35 56 42
40 69 58
45 83 77
50 100 100

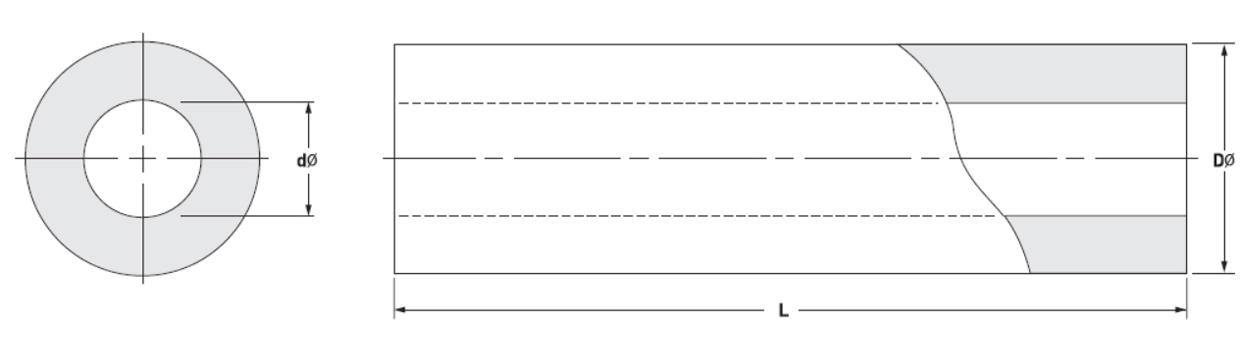

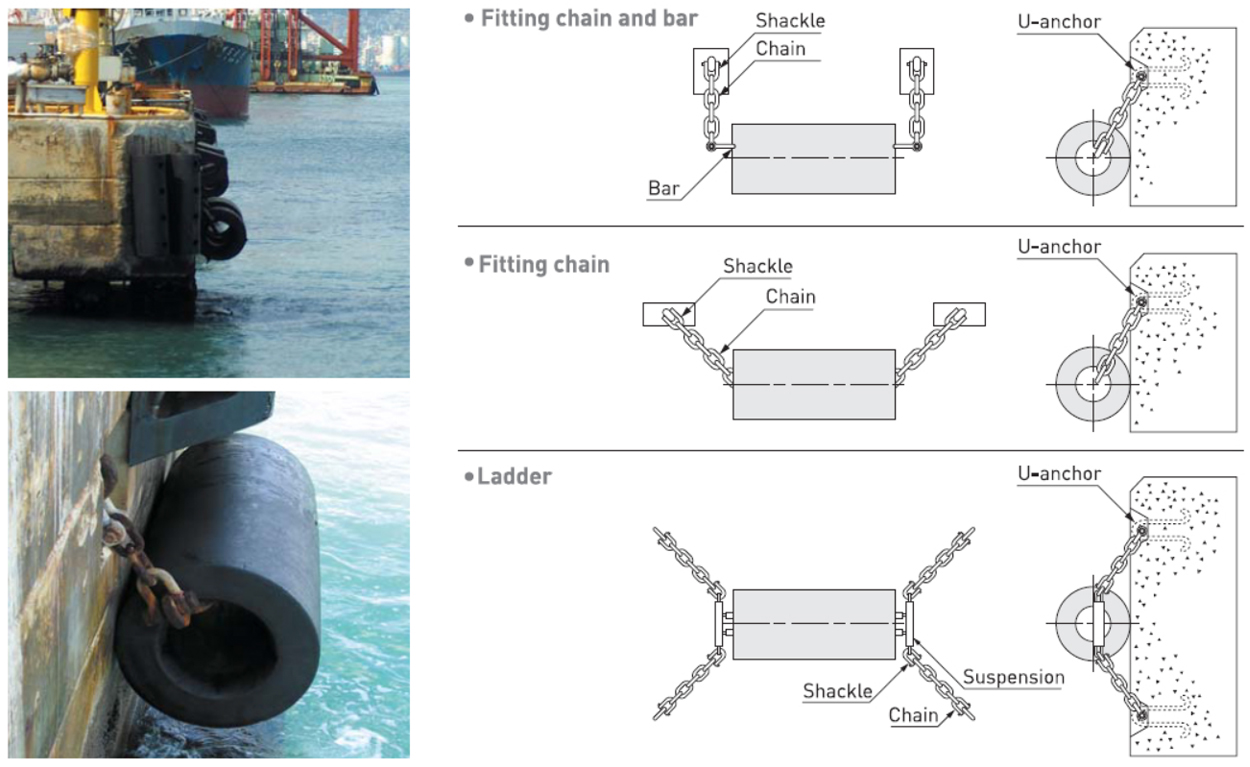

Specification / Dimensions

Size ø150xø75 ø200xø100 ø250xø125 ø300xø150 ø400xø200 ø500xø250 ø600xø300 ø700xø350 ø800xø400
øD 150 200 250 300 400 500 600 700 800
ød 75 100 120 150 200 250 300 350 400
Size ø900xø450 ø1000xø500 ø1100xø550 ø1200xø600 ø1400xø700 ø1500xø750 ø1600xø800 ø1800xø900 ø2000xø1000
øD 900 1000 1100 1200 1400 1500 1600 1800 2000
ød 450 500 550 600 700 750 800 900 1000

Performance of Intermediate
